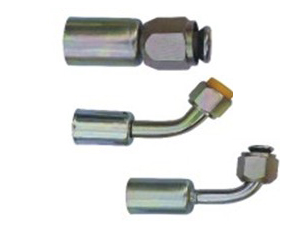

Material: Steel tube and steel ferrules fittings, Aluminum tube and steel ferrules fittings
Aluminum tube and aluminum ferrules fittings
Straight:45 degree 90 degree 6# 8#, 10#, 12#
The tube size: ∮9.5*1.6; ∮12*1.6; ∮14*1.6; ∮16*1.6; ∮19.5*1.6; ∮13.2*1.6 etc.
Our a/c fittings are quite complete, all steel, all aluminum and steel-aluminum fittings are available. We can produce it according to your requirements or samples.
Our standard is SAE J512, SAE639.
| HACM NO. |
REFERENCE NO. |
APPLICATION |
DESCRIPTION |
PHOTOS |
| HC.22.0739-0753 | #5//#8/#10/#12/#16
straight/45°/90 | Iron joint with R12 valve | Female,O-ring
9/16-18UNF,5/8-18UNF
3/4-16UNF,7/8-14UNF
1 1/16-14UNS |  |
| HC.22.0735-0738 | #6,#8,#10,#12 | Iron through pipe with R12 high and low valve | |  |
| HC.22.0731-0734 | #6,#8,#10,#12 | Iron through pipe with R12 valve | |  |
| HC.22.0727-0730 | #6,#8,#10,#12 | | |  |
| HC.22.0715-0726 | #5/8/10/12/16/straight/45°/90° | Iron jonit with iron jacket | 3/4-16UNF,7/8-14UNF,5/8-18UNF,1 1/16-14UNS |  |
| HC.22.0700-0714 | #5/8/10/12/16/straight/45°/90°
3/4-16UNF,7/8-14UNF,5/8-18UNF
9/16-18UNF,1 1/16-14UNS | Iron jonit with iron jacket | Female
O-ring |  |
