DC motor/Fan motor/evaporator blower motor/ evaporator motor/Bus A/C motor
This blower is shaft operated, with simple structure, reliable, efficent, long life feature. Is vehicle type condenser the and so on IVECO, prosperous river, Chang An ideal air blower.
| HACM NO. |
REFERENCE NO. |
APPLICATION |
DESCRIPTION |
PHOTOS |
| HC.05.0008 | Working temp:-40¡æ¡×85¡æ
Rated voltage:24VDC/12VDC
Operation: continous
Noise:80dB(A) | used for Yutong. Jinglong,Yaxin vehicles etc, | The blowing fan is axial flow type,it has the characteristics of structure compact,working reliability and high efficiency,long working life,It is an ideal fan for cooling automobile air-conditioner condenser.Presently it is widely |  |

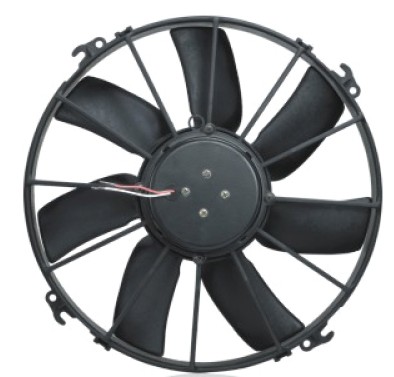

| HC.05.0024 | Working temp:-40¡æ¡×85¡æ
Rated voltage:24VDC
Operation: continous
Noise:80dB(A) | used for Yutong. Jinglong,Yaxin vehicles etc, | This blower is Brushless condensation fan, |  |
| HC.05.0021 | Working temp:-40¡æ¡×85¡æ
Rated voltage:12VDC/24VDC
Operation: continous | for cooling down engine and air conditioning condenser | This blower is shaft operated, with simple structure, reliable, efficent, long life feature. |  |
| HC.05.0015 | Working temp:-40¡æ¡×85¡æ
Rated voltage:24VDC
Operation: continous | Yutong, Jinglong,Yaxing vehicles etc | This blower is shaft operated, with simple structure, reliable, efficent, long life feature. is ideal blower for air conditioning condenser |  |
| HC.05.0023 | Working temp:-40¡æ¡×85¡æ
Rated voltage:12VDC
Operation: continous | Changhe, Adier vehicles etc | This blower is shaft operated, with simple structure, reliable, efficent, long life feature. is ideal blower for cooling down engine and air conditioning condenser, |  |
| HC.05.0006 | Working temp:-40¡æ¡×85¡æ
Rated voltage:24VDC
Operation: continous | used by Yutong, Jinglong,Yaxin buses | Test Voltage£º27VDC£¨Temp 25¡æ£©
Pressure£¨pa£©50 80 100 125 150 175 200 225 250
Blowing Vl£¨m3/h£©2060 1960 1764 1608 1460
Current£¨A£©6.3 6.5 6.6 6.7 6.8 7.0 7.1 7.2 7.3 7.5 7.7 |  |
| HC.05.0013 | Working temp:-40¡æ¡×85¡æ
Rated voltage:12VDC/24VDC
Operation: continous | used by Yutong, Jinglong,Yaxin buses. | Test Voltage£º27VDC£¨Temp 25¡æ£©
Pressure£¨pa£©50 80 100 125
Blowing Vl£¨m3/h£©2060 1960 1764 1608 1460 1273 1104
Current£¨A£©6.3 6.5 6.6 6.7 |  |
| HC.05.0003 | Working temp:-40¡æ¡×85¡æ
Rated voltage:12VDC/24VDC
Operation: continous | It is ideal blower for Iveco and changan vehicles | This blower is double shaft operated, with simple structure, reliable, efficent, long life feature |  |
| HC.05.0017 | Working temp:-40¡æ¡×85¡æ
Rated voltage:24VDC
Operation: continous | for cooling down engine and air conditioning condenser | This blower is shaft operated, with simple structure, reliable, efficent, long life feature. |  |
| HC.05.0022 | Working temp:-18¡æ¡×85¡æ
Rated voltage:12VDC
Operation: continous
weight:1.3kg
noise:76dB(a) | IVECO, prosperous river, Chang An ideal air blower
| Test Voltage£º13.5VDC£¨Temp 25¡æ£©
Pressure£¨pa£©0 25 50 60 70 80 90 100 125 150
Blowing Vl£¨m3/h£©1253 1050 903 828 754 671 556 Current£¨A£©6.9 6.8 6.9 |  |
