| HACM NO. |
REFERENCE NO. |
APPLICATION |
DESCRIPTION |
PHOTOS |
| HC.20.0009 | Working voltage: DC 12V (or DC24V)
Rating current: 10A | Applied for BEU-848L-100, BEU-223L-100 etc | Function: 2±0.5℃ stop; 4±0.5℃ open; Cooling can be adjusted in 1-20℃; we can do the fitting as customer’s requirements |  |
| HC.20.0008 | Working voltage: DC 12V (or DC24V 20A)
2 Rating current: 10A | Applied for BEU-228L-100, BEU-226L-100 | Function: 2±0.5℃ stop; 4±0.5℃ open; Cooling can be adjusted in 1-20℃; we can do the fitting as customer’s requirements. |  |
| HC.20.0001 | Working voltage: DC 24V (or DC12V )
Rating current: 10A | Applied for BEU-414L-100;BEU-406L-100, rear evaporator assembly etc | Sensor(Temperature controller probe): 60CM, 5K+1%, B25/85=3470k+1%
Working temperature: 0℃-80℃ |  |

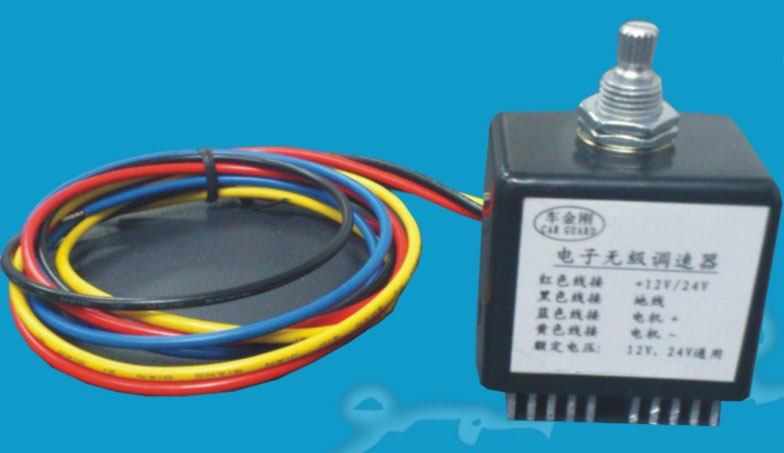

| HC.20.0011 | Electronic controlled variable speeder for heater | Working voltage: DC 12/24V
Rating current: 8A(12V); 4A(24V)
Size: Refer to drawing. Roller or rachides | Function: This variable speed controller can control the resistor to adjust the air flow arbitrarily in the air flow volume.
12/24V is same with the resistor, no need to add other parts. we can do the roller as customer’s requirements. | -B02.jpg$20133201603299135.jpg) |
| HC.20.0007 | Working voltage: DC 24V
Max.current: 1500MA
Power: 4W (double motor, 120W per motor) | | display: digital display( red light, blue light, green light are available)
|  |
| HC.20.0006 | Working voltage: DC 12V OR 24V
Max.current: 1500MA
Power: 4W (double motor, 100W per motor) | | digital display( red light, blue light, green light are available) |  |
| hacmt012 | Working voltage: DC 12V (24V)
Rating current: 20A
Size: Refer to drawing. | Applied for BEU-202-100 | Function: air flow can be adjusted by button(7 grades); Cooling can be adjusted in 0-20℃, digital display to show the air temperature, we can do the fitting as customer’s requirements |  |
| HC.20.0003 | Working voltage: DC 12V OR 24V
Max.current: 1500MA
Power: 4W (double motor, 100W per motor) | Applied for BEU-848L-100 BEU-223L-100, BEU-226L-100 | display: digital display( red light, blue light, green light are available)
|  |
| HC.20.0002 | Working voltage: DC 12V
Max.current: 1500MA
Power: 4W (double motor, 120W per motor) | Applied for BEU-226L-100 | display: LCD (white light, blue light are available)
|  |
ALL9 Record，A 1 Page，ALL 1 Page
