Material: Steel tube and steel ferrules fittings, Aluminum tube and steel ferrules fittings
Aluminum tube and aluminum ferrules fittings
Straight:45 degree 90 degree 6# 8#, 10#, 12#
The tube size: ∮9.5*1.6; ∮12*1.6; ∮14*1.6; ∮16*1.6; ∮19.5*1.6; ∮13.2*1.6 etc.
Our a/c fittings are quite complete, all steel, all aluminum and steel-aluminum fittings are available. We can produce it according to your requirements or samples.
Our standard is SAE J512, SAE639.
HACM NO. |
REFERENCE NO. |
APPLICATION |
DESCRIPTION |
PHOTOS |
HC.22.0609-0612 | #5/8/10/12 | Tee pipe | | |

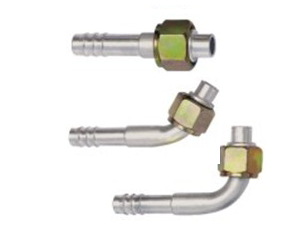

HC.22.0528-0531 | #5/8/10/12 | Al.pipe with screw | | |
HC.22.0493-0498 | #5/8/10/12/16/straight 45°/90°, | Al Joint with al.bracket | | |

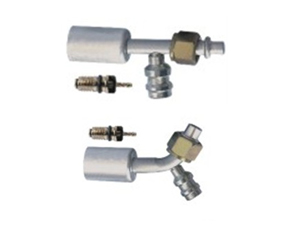

HC.22.0241-0255 | #5/8/10/12/16/straigh
45°/90° | Al.joint with R12 valve | 3/4-16UNF,7/8-14UNF,5/8-18UNF 9/16-18UNF,1 1/16-14UNS
| |
HC.22.0217-0228 | #5/8/10/12/16/straight
45°/90° | | 3/4-16UNF,7/8-14UNF,5/8-18UNF 9/16-18UNF,1 1/16-14UNS | |
HC.22.0001-0015 | | Al Joint with iron cap | Female
O-ring | |
HC.22.0925-0928 | | Trough pipe with valve | | |
HC.22.0929-0933 | | Iron jacket | | |
HC.22.0851-0855 | #6,#8,#10,#12 | Through pipe with iron jacket R12 valve | | |
HC.22.0766-0780 | #5//#8/#10/#12/#16 straight/45°/90° | Iron joint with R12 low pressure valve | Female,O-ring
9/16-18UNF,5/8-18UNF 3/4-16UNF,7/8-14UNF 1 1/16-14UNS | |
